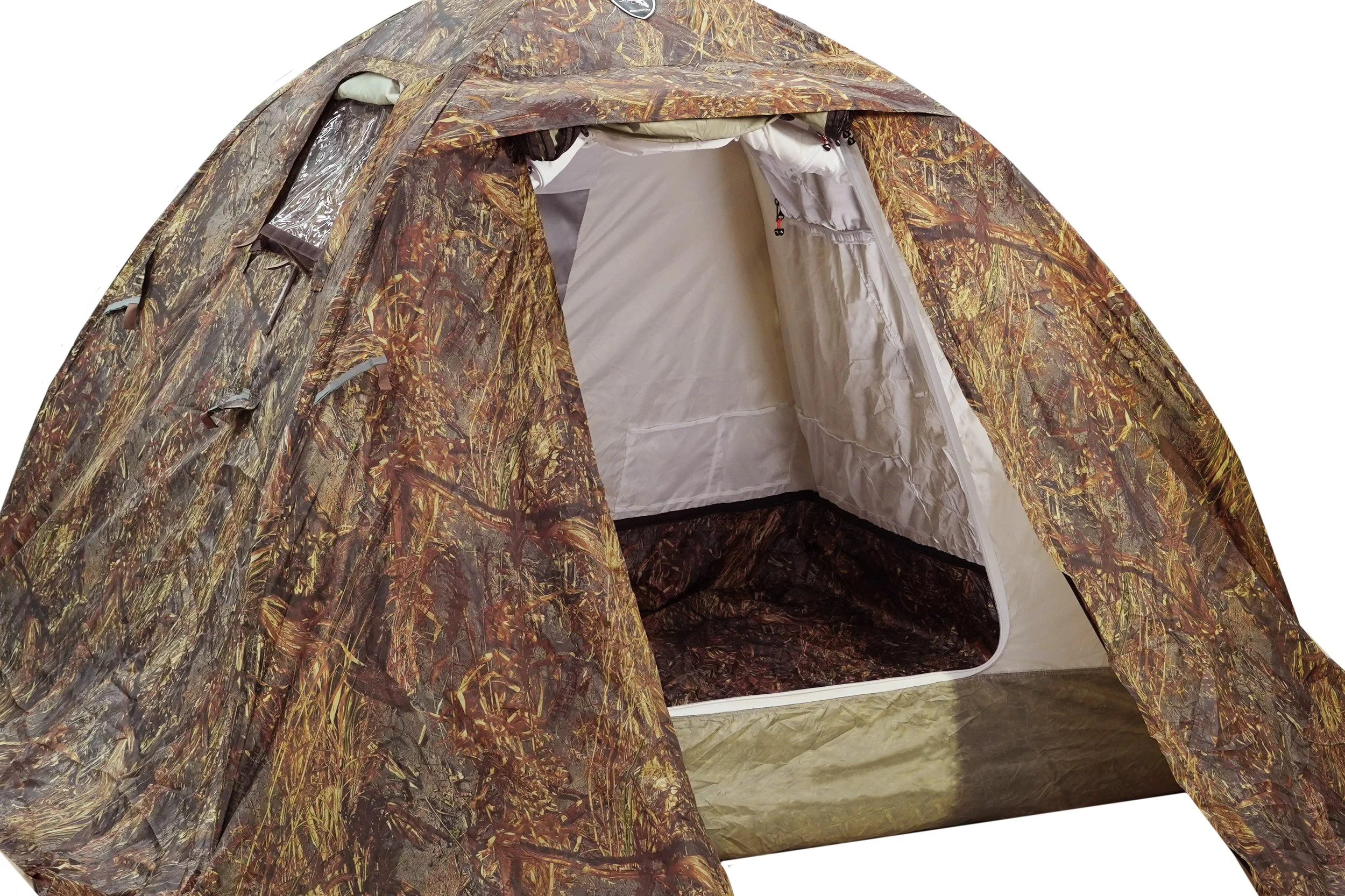

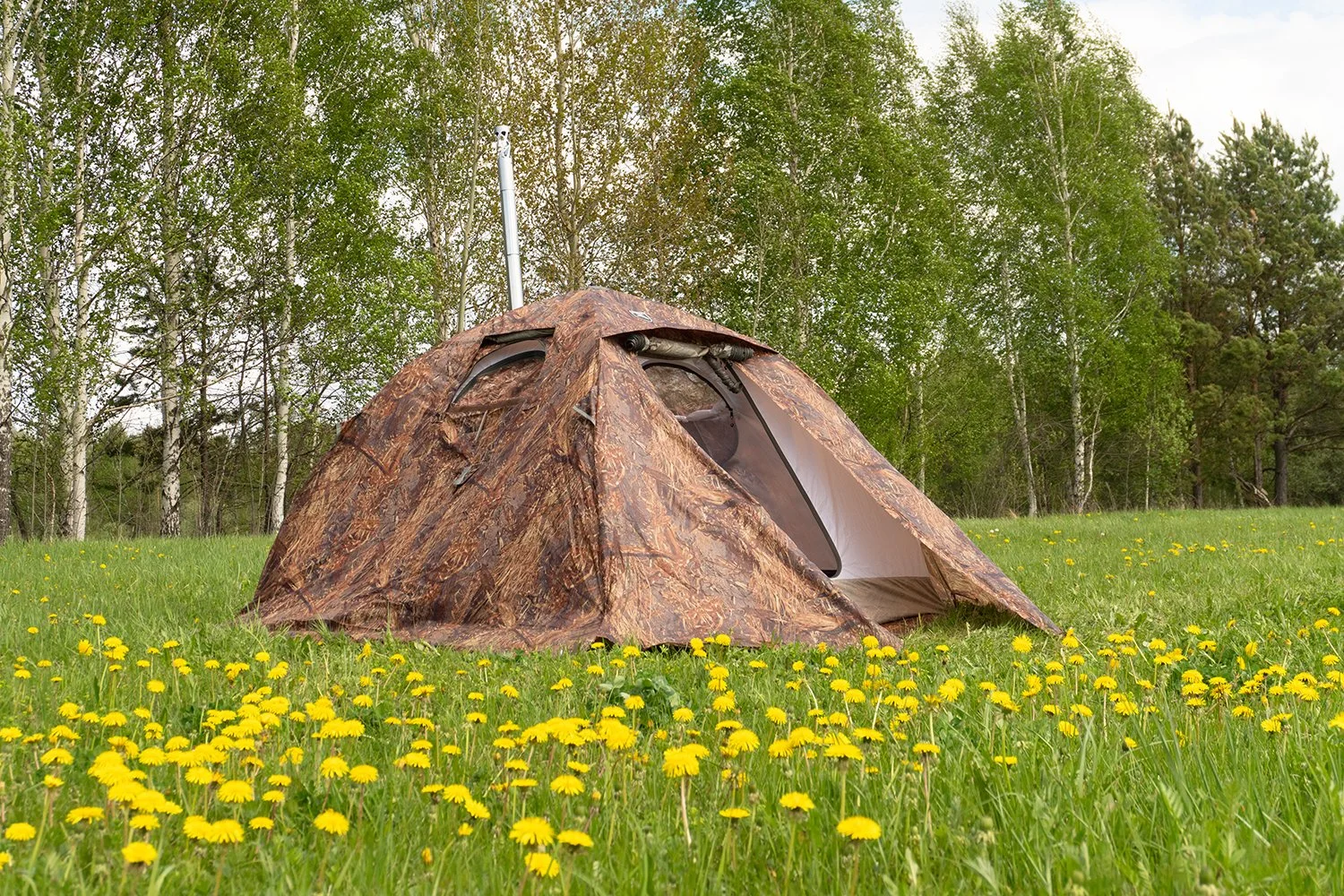

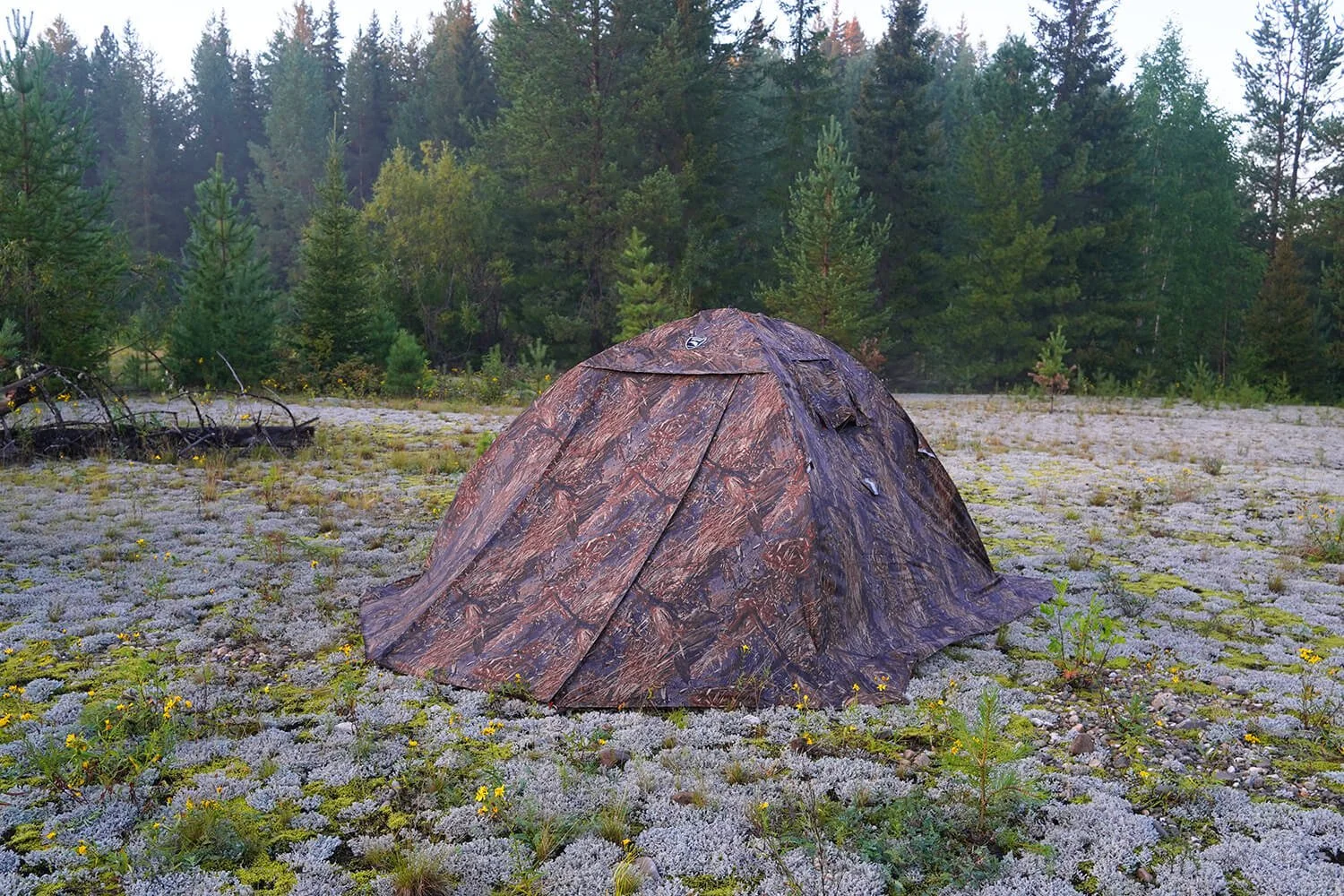

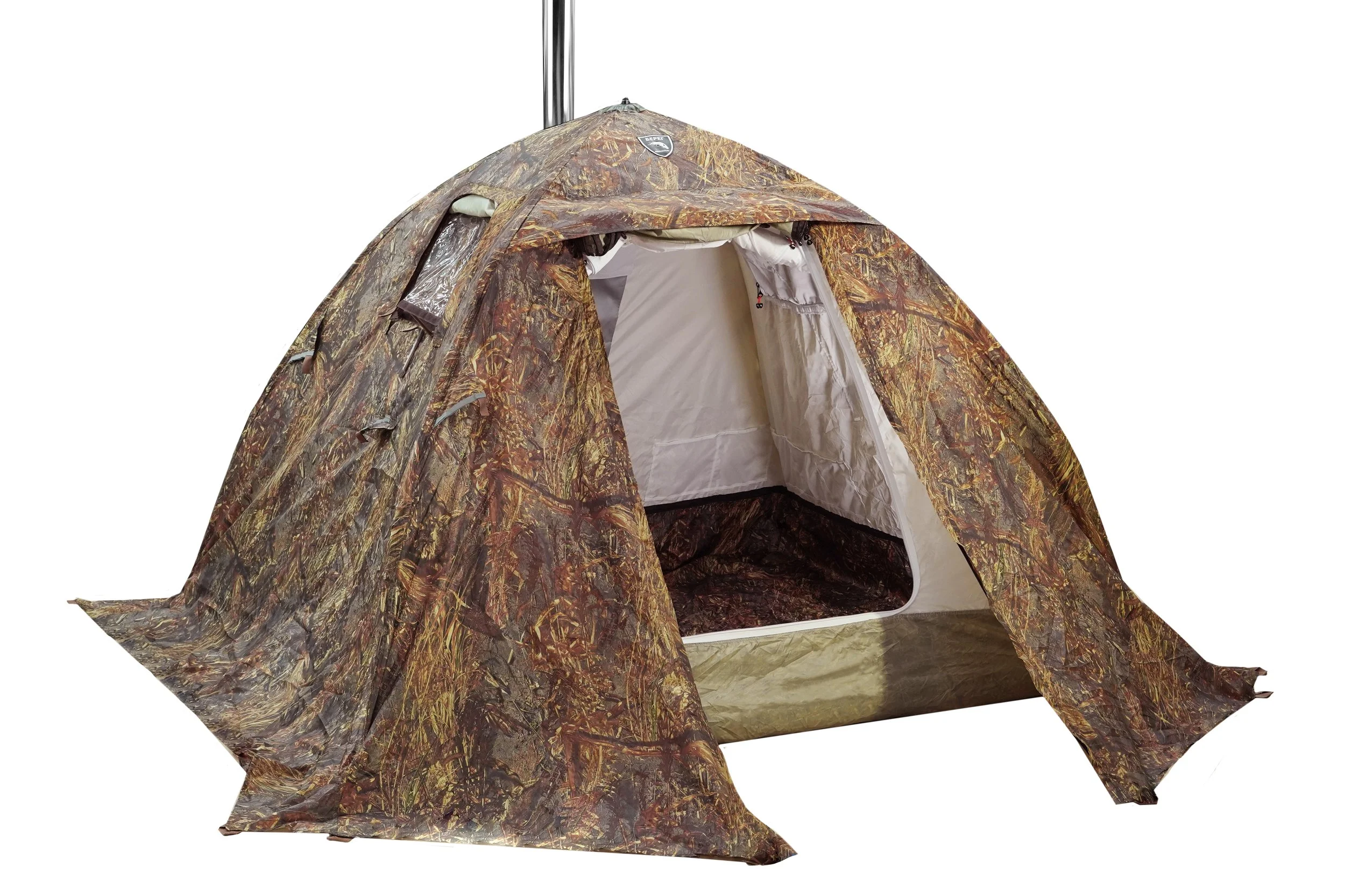

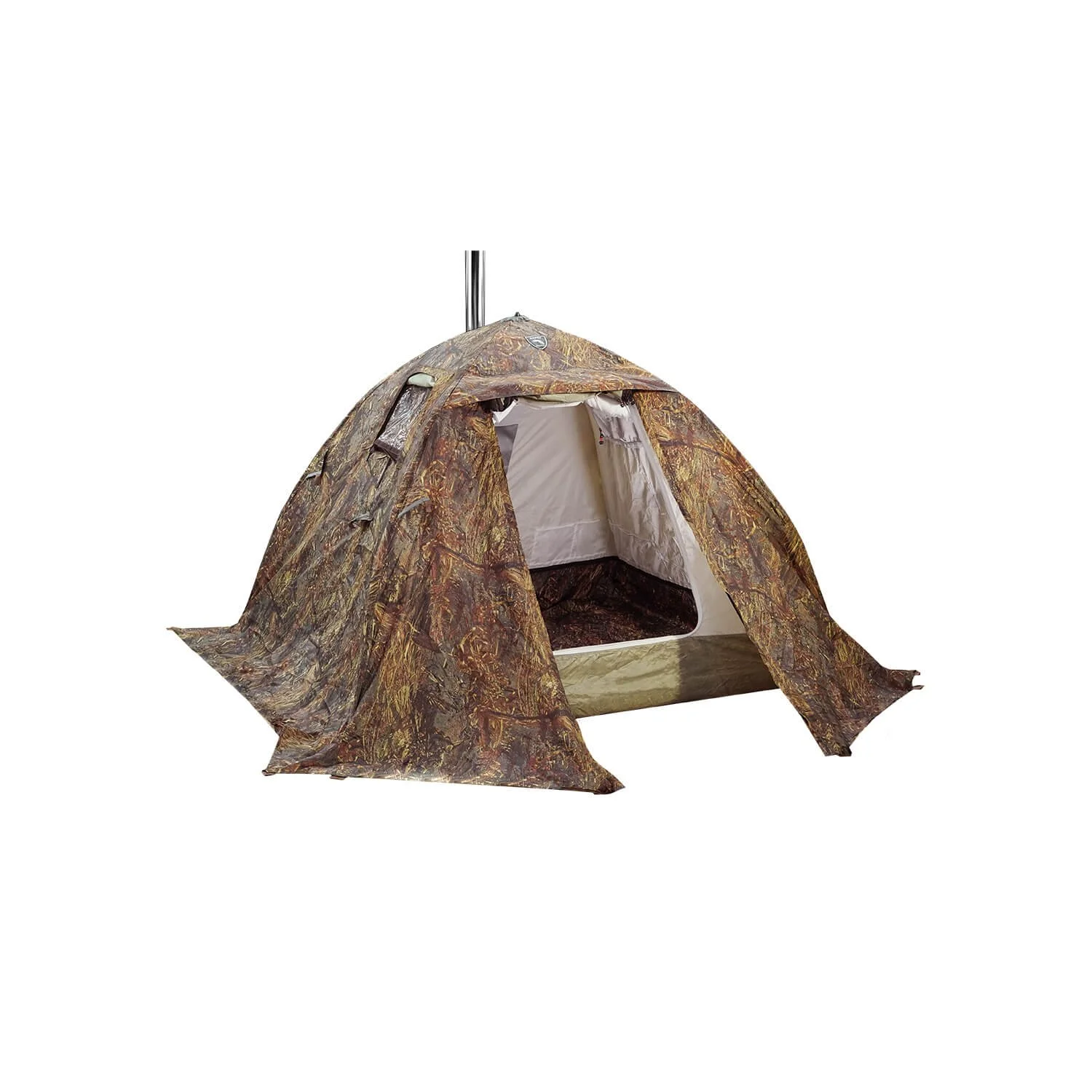

Sputnik-3 is the most compact and lightweight hot tent in the PF Bereg UP series, featuring a packed size of 105 x 25 x 25 cm. This small double-layer tent is designed for 1-3 people. The Sputnik-3 features a four-beam, umbrella-style aluminum frame. The tent has multilayer windows with frost-resistant PVC pieces, a built-in stove jack, a zippered door, and mosquito nets on both the door and windows, as well as a fully removable zippered bottom.

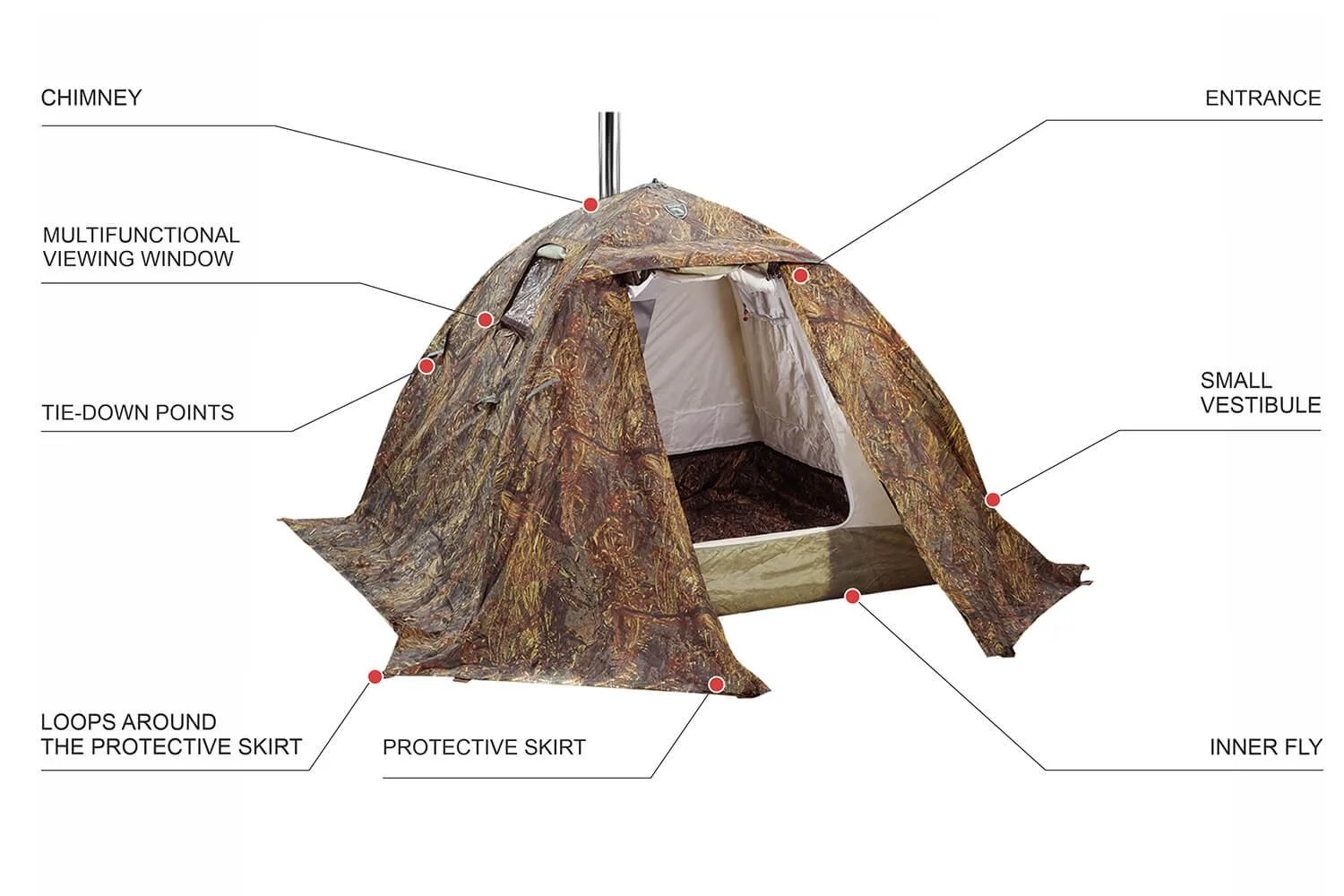

OUTER FEATURES:
- Rectangular entrance with zipper and mosquito net.
- Stove jack with a selectable diameter for use with a wood stove.

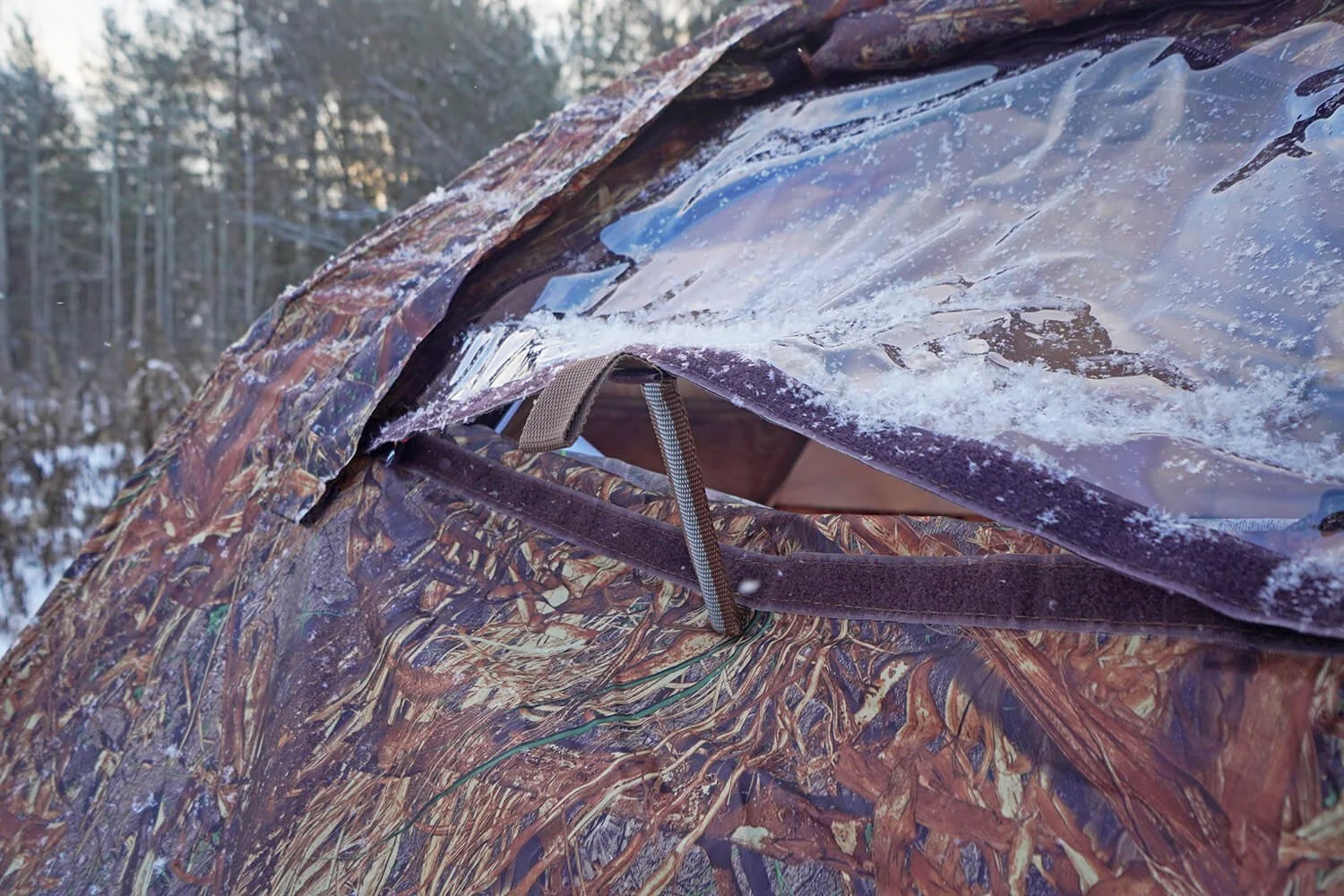

- Multifunctional viewing windows with a mosquito net and a clear cold resistant PVC window attached with Velcro.

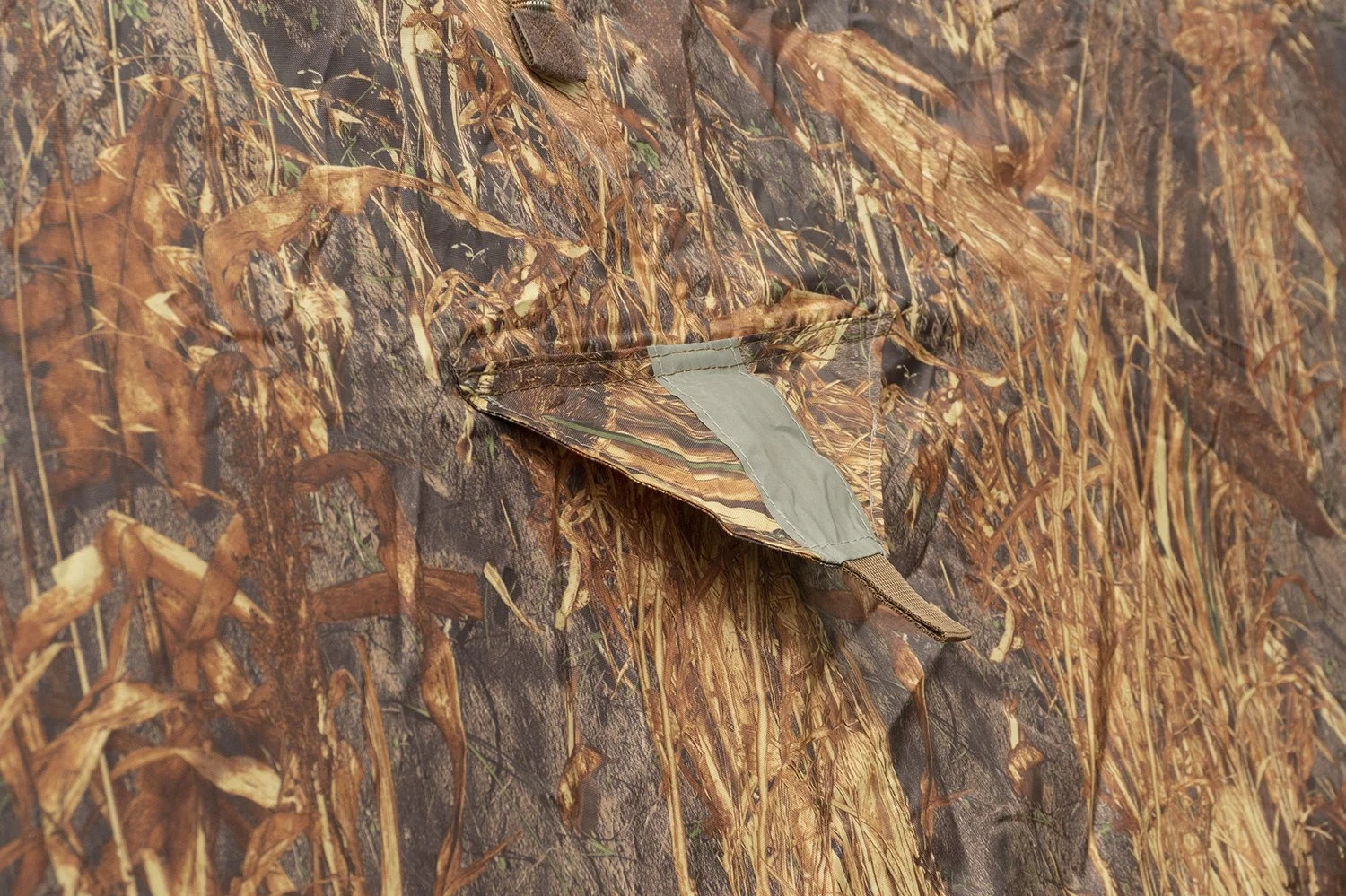

- Tie-down points connected to the tent frame, equipped with reflective elements and pockets to store the guy lines.
- Protective skirt with pull-out loops for stakes.

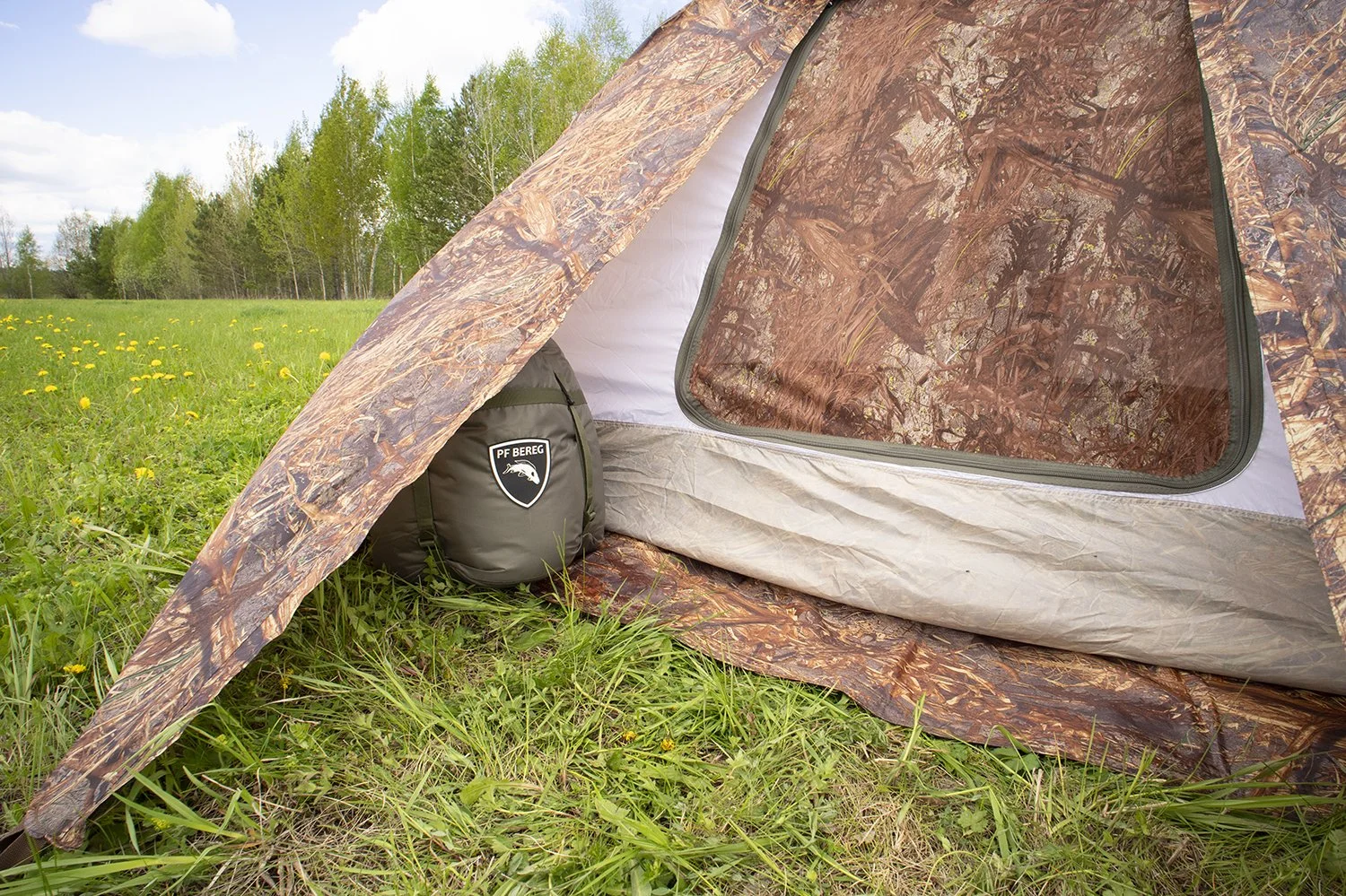

- Small vestibule for storing additional equipment or shoes.

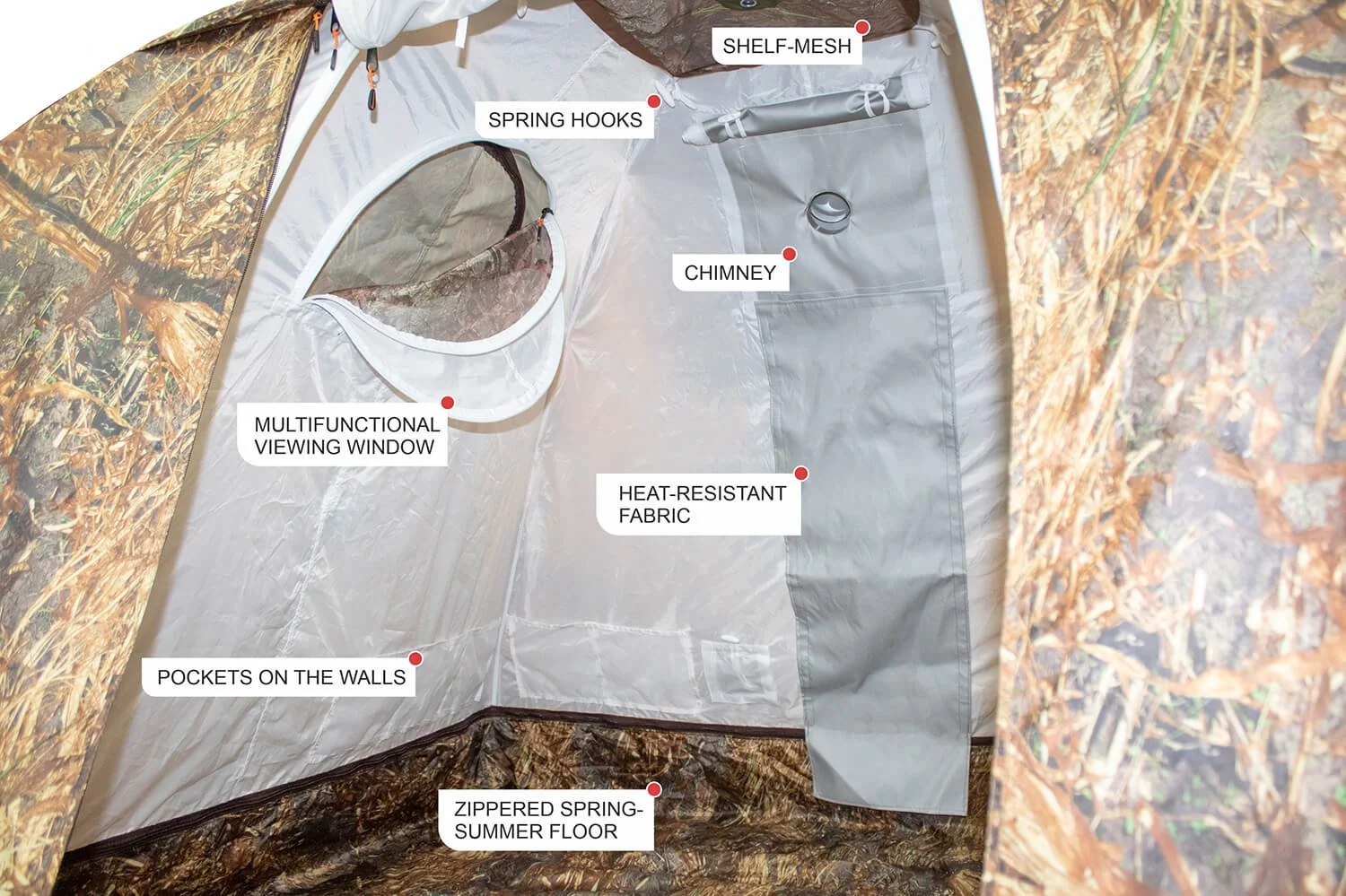

INNER FEATURES:
- Shelf-mesh for installing a flashlight and drying things.
- Spring hooks for attaching equipment.
- Pockets on the walls.
- Ventilation window at the bottom of the tent for air flow.

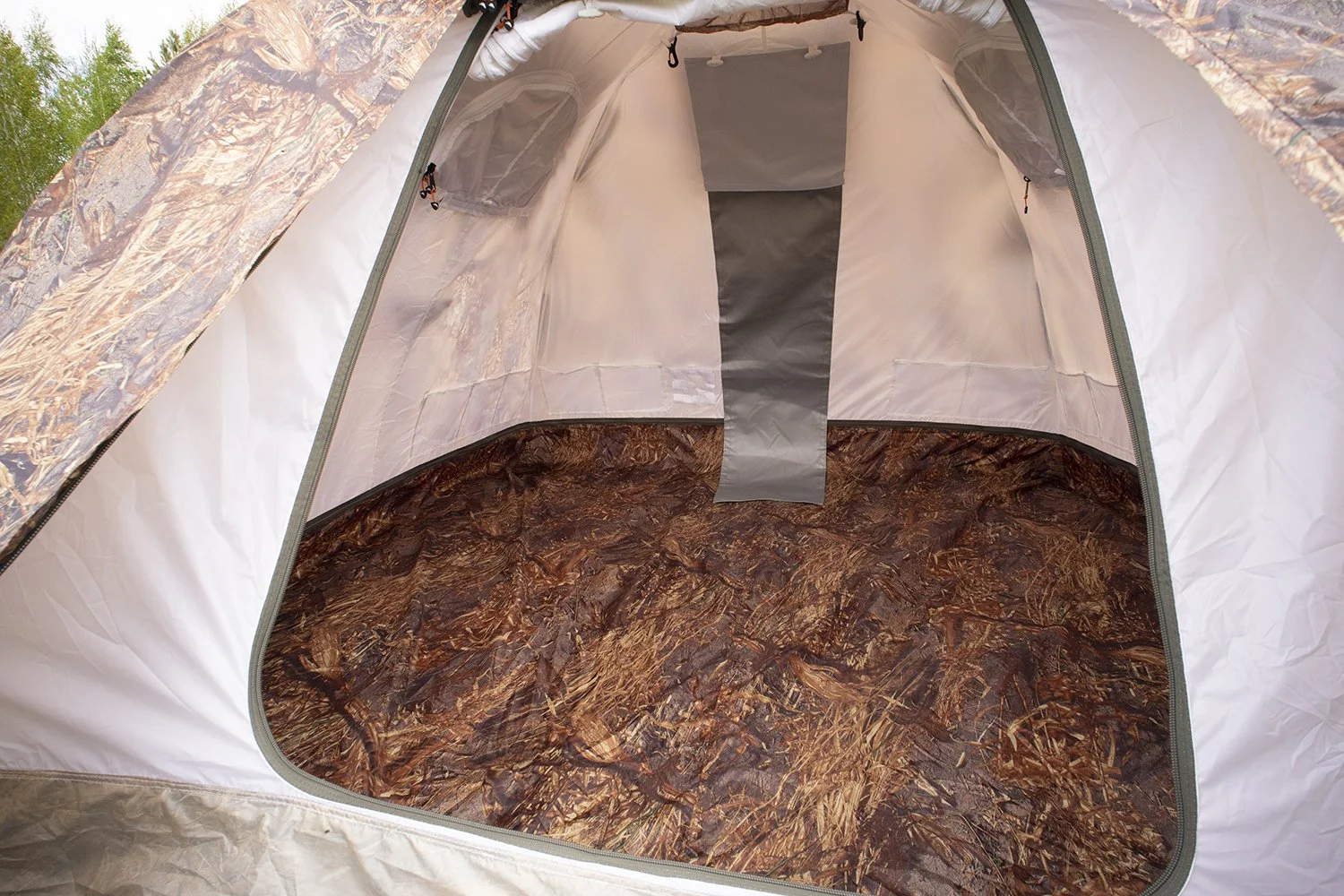

- Zippered spring-summer floor installed at a height of 10 cm.
Manufacturing materials
The frame is constructed from 8 mm rods of B95T1 aviation aluminum alloy (in USA AA7075, in EU ENAW 7075), known for its high frost resistance and durability. It can withstand significant mechanical loads and returns to its original shape even after extended exposure.
The dome-umbrella design offers several advantages:
· Minimizes the accumulation of precipitation on the tent;
· The streamlined shape provides stability during gusts of wind.
The hot tent has two flies. The outer fly is made of Oxford 300 DEN fabric with a PU water impregnation rating of 4000 mm. The inner fly is made of Oxford 210 DEN fabric with a PU water impregnation rating of 2000 mm. The seams are sealed with special tape for extra protection against moisture.
! The two-layer design of the Sputnik-3 tent creates an “air gap” that helps maintain a comfortable temperature inside. Any condensation that forms is trapped between the layers, preventing moisture from entering the interior space.

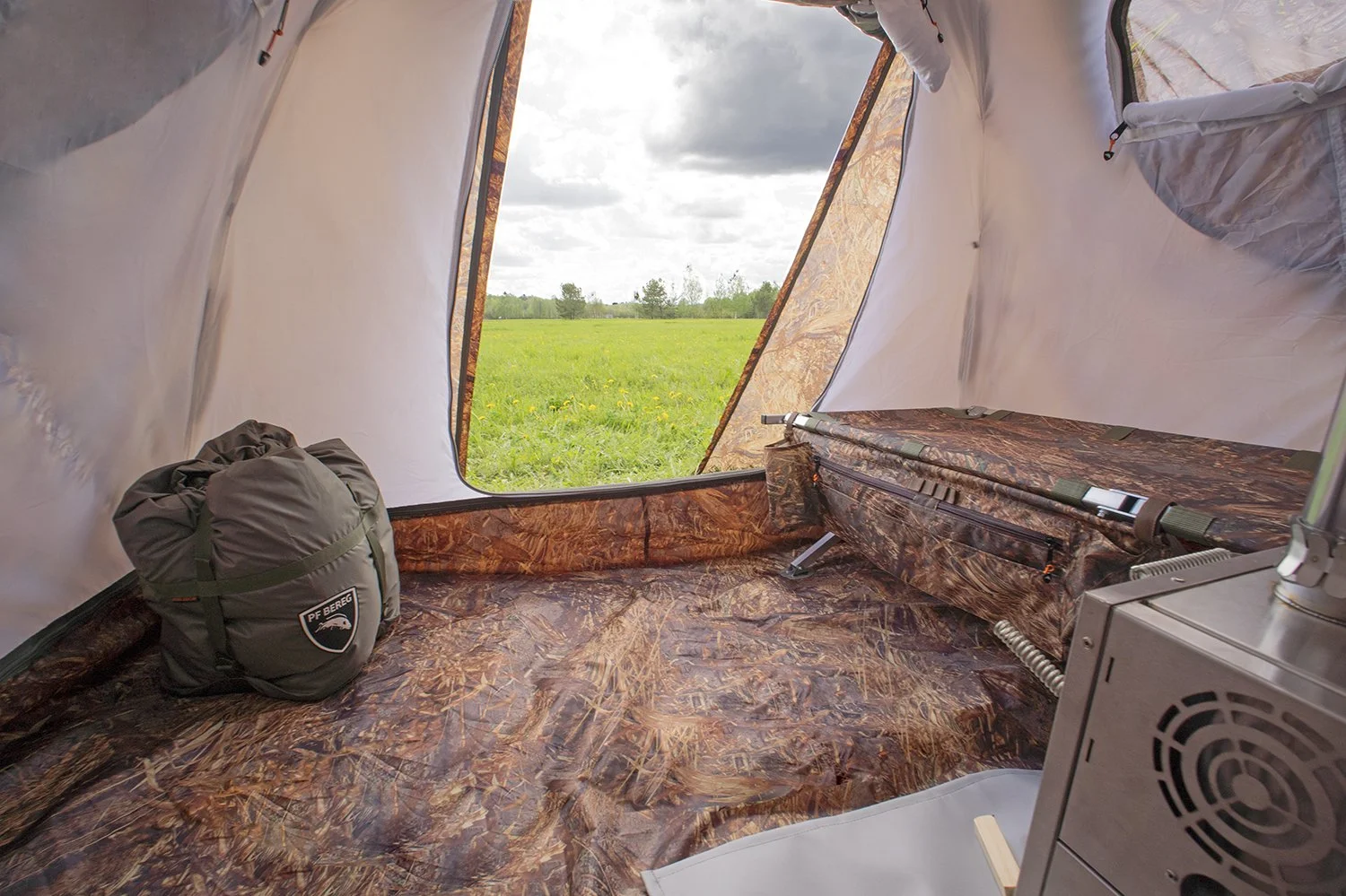

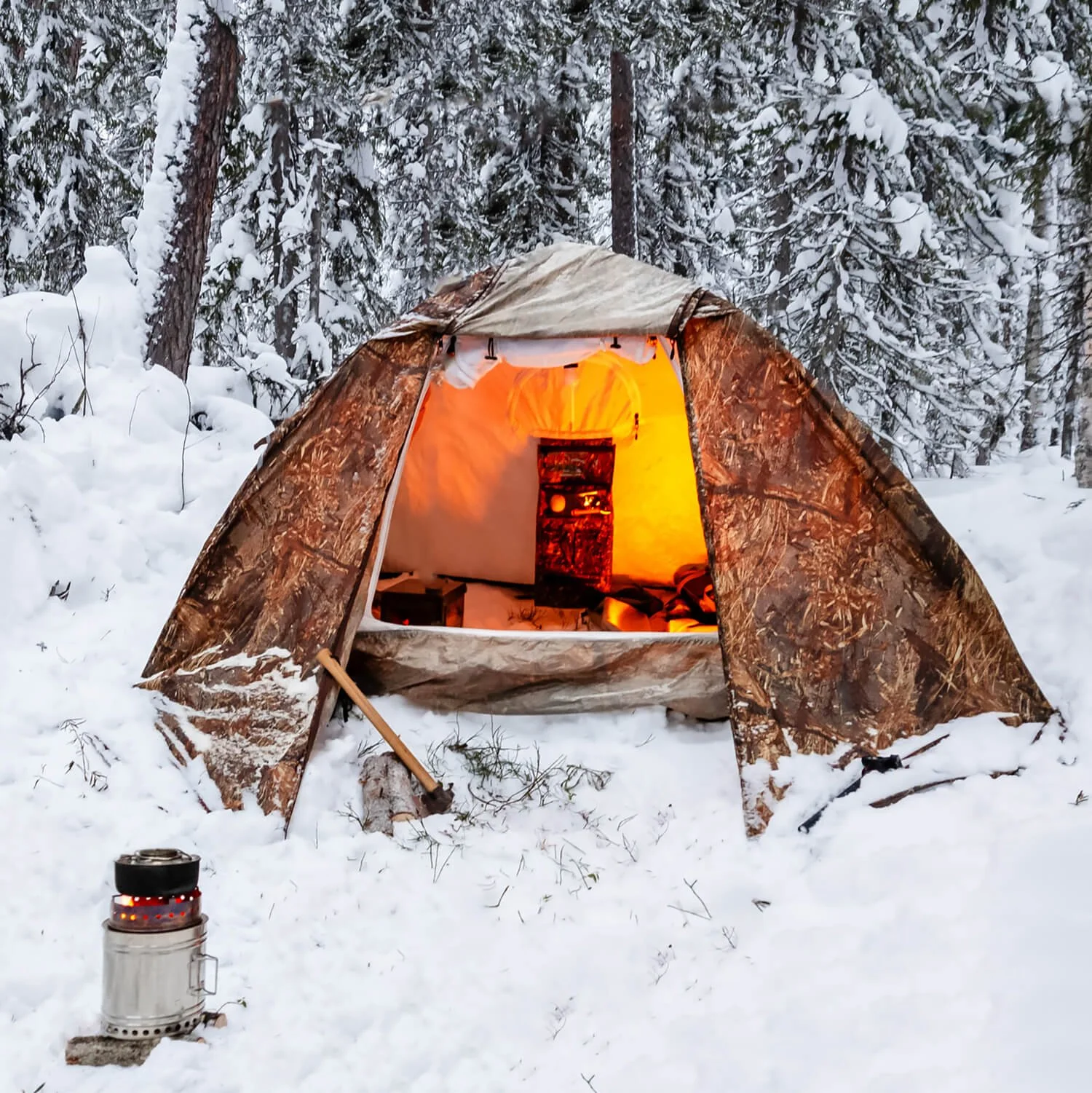

Heating the Sputnik-3
The hot tent has a place for installing a wood-burning stove. It features a built-in stove jack made of fire-resistant fabric, allowing for the selection of the appropriate pipe diameter. A removable sheet of heat-resistant fabric is secured on a Velcro fastener to protect the tent wall from potential damage.
Special features:
Outer and inner flies with fully removable floor, storage pockets, vestibule for storing extra pieces, compact packaging size
Capacity:

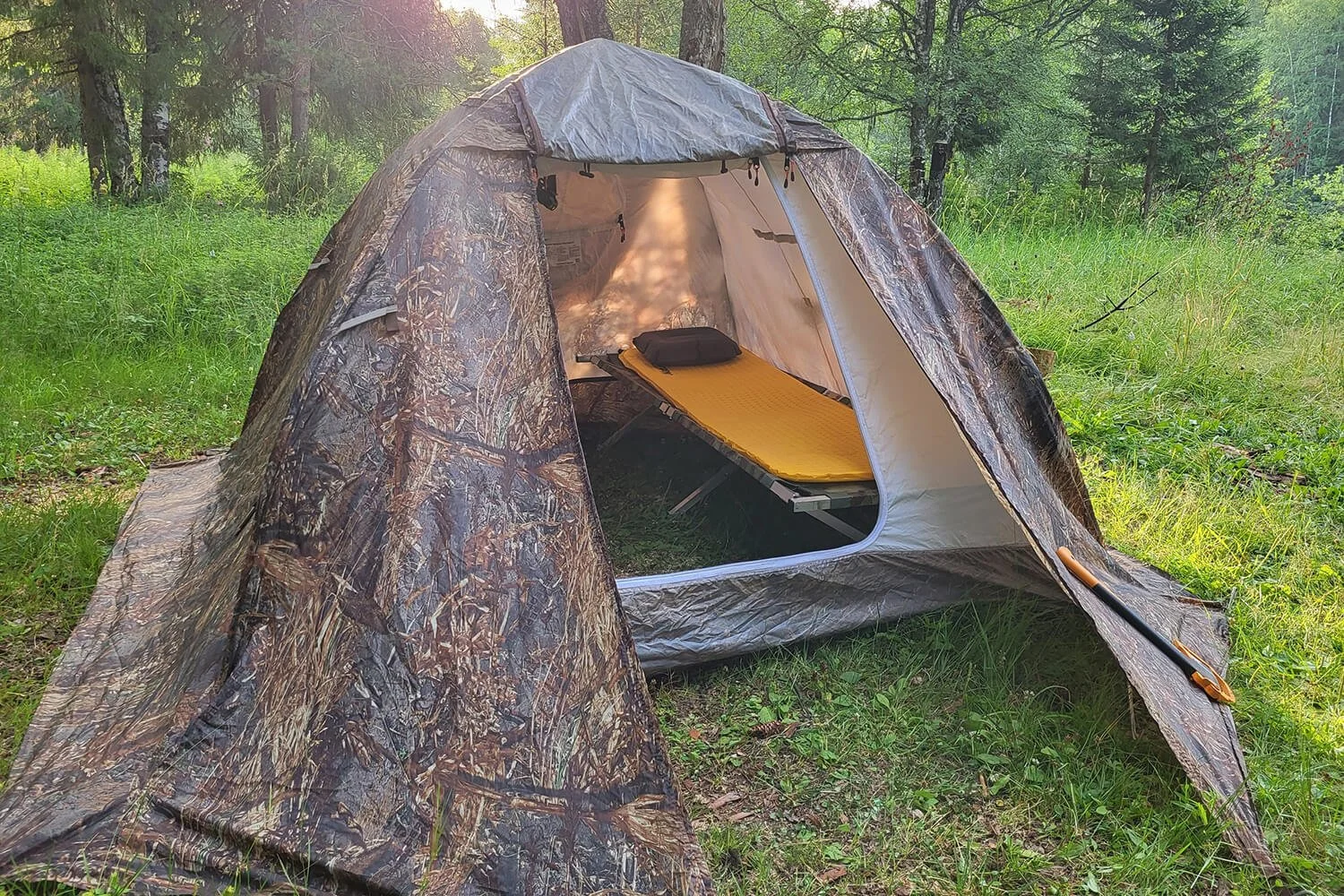

With a wood stove and folding beds = 1
In sleeping bags on mats . = 3

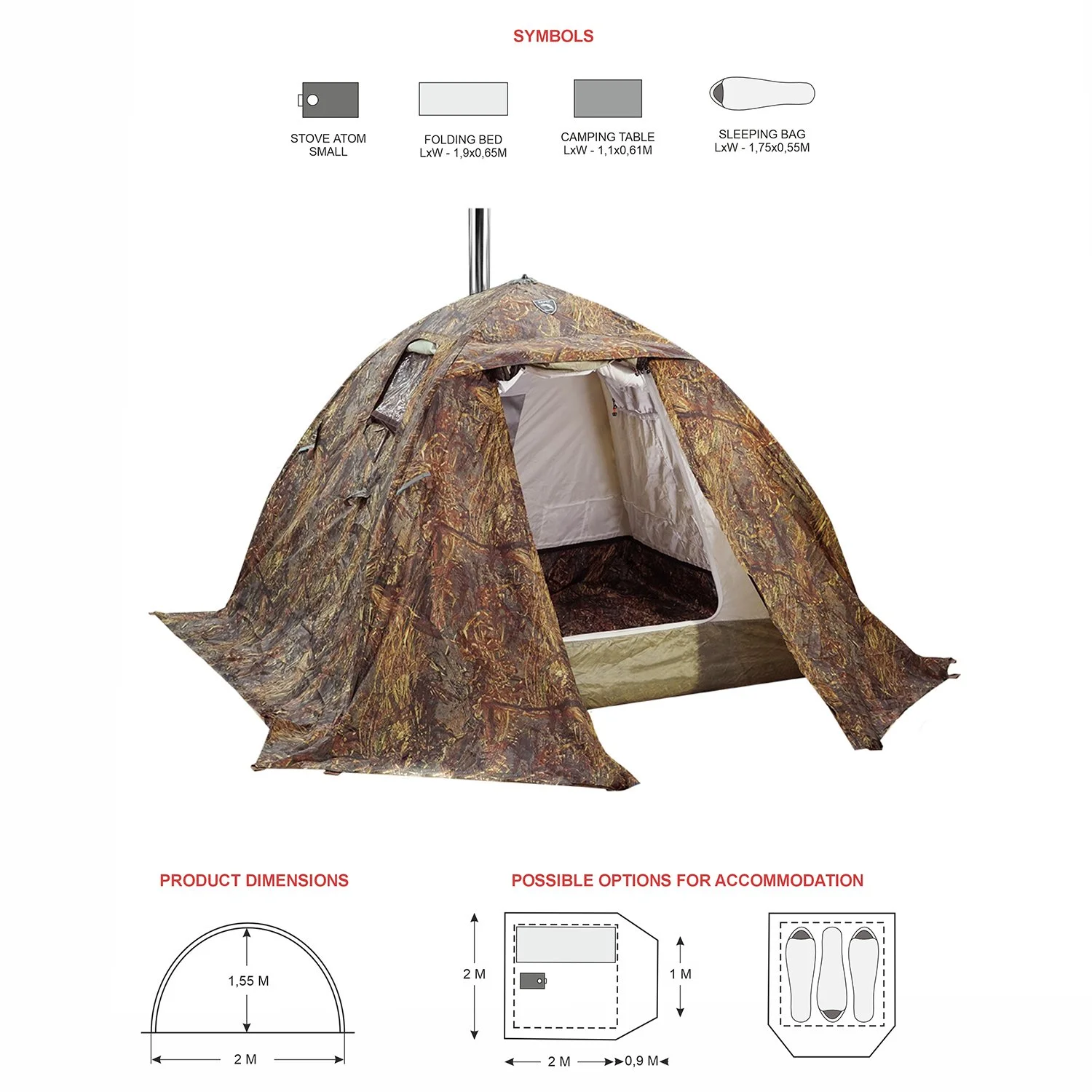

Specifications:
Window . = 2
Entrance . = 1
Stove jack plate 2 pcs - , diameter 68 mm (for stoves with a pipe diameter of 65 mm)
Length = 2m
Width = 2m
Height = 1.55m
Side length 2m
Useful area = 3.6 m²
Weight 11kg
Packaging dimensions:
Dimensions = 105cm х 25cm х 25cm
Volume = 0.07 m³
Materials:
Outer fly: Oxford 300 PU 4000 mm
Frame is Aviation aluminum alloy USA AA7075, in EU ENAW 7075, rod 8 mm
