Used extensively with Pro Pest Control Operators
This thermal device can be used in the following configurations:
Handheld

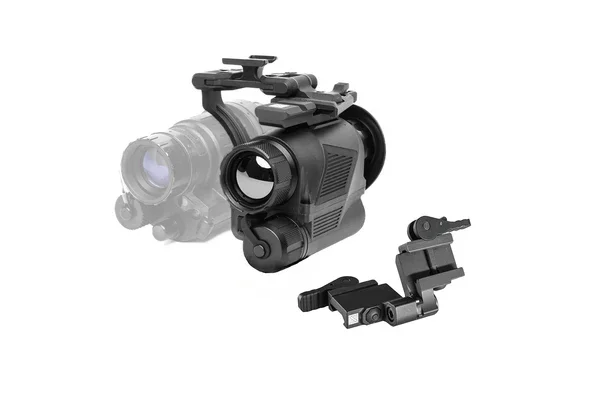

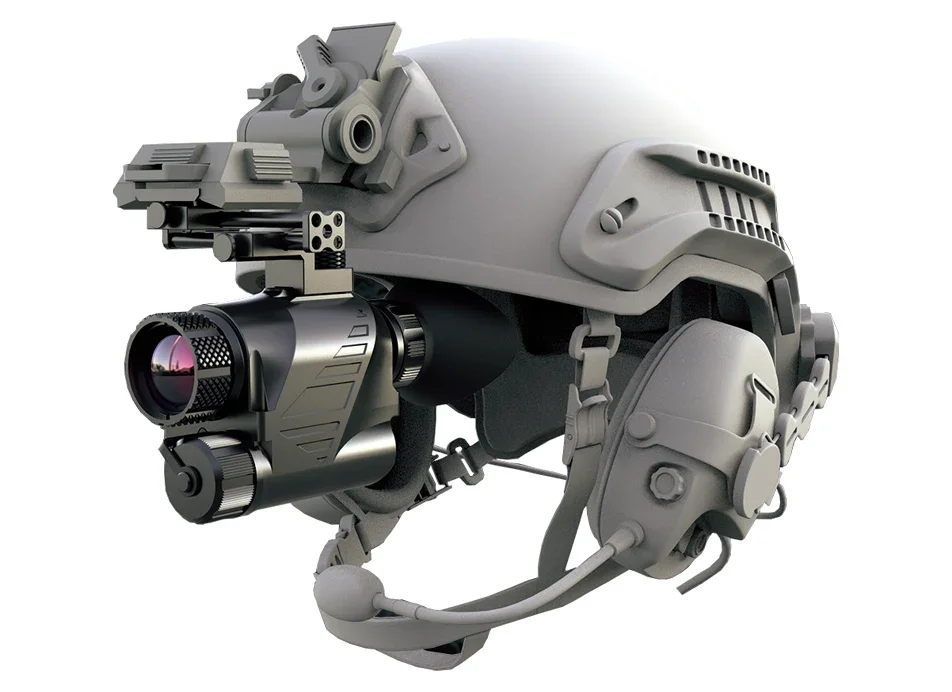

Helmet-mounted (dovetail helmet arm and G24-style dovetail mount included!)

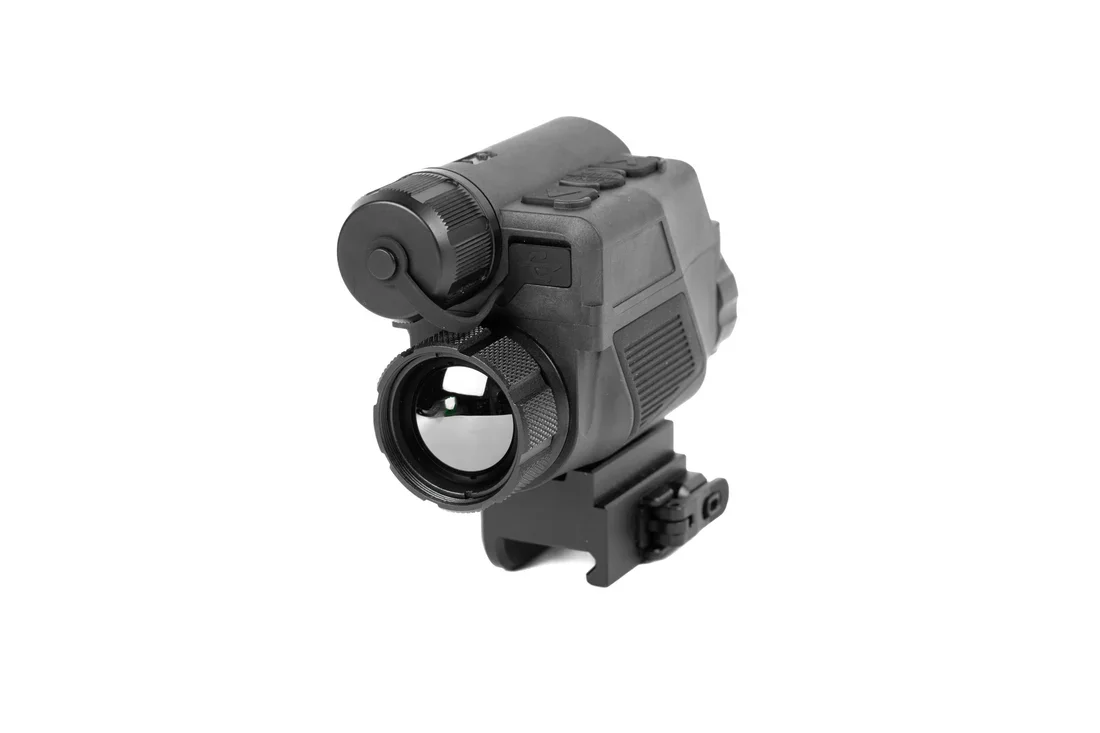

Stand-alone thermal weapon sight / scope (1913 Picatinny mount included! At lower 1/3 height 1.54")
Clip-on, in front of a day optic such as a Low Power Variable Optic (eg: 1-6x or 1-8x scopes) - includes in-menu screen off-set adjustments to collimate with your day optic (only rated for recoil up to 5.56mm/.223)

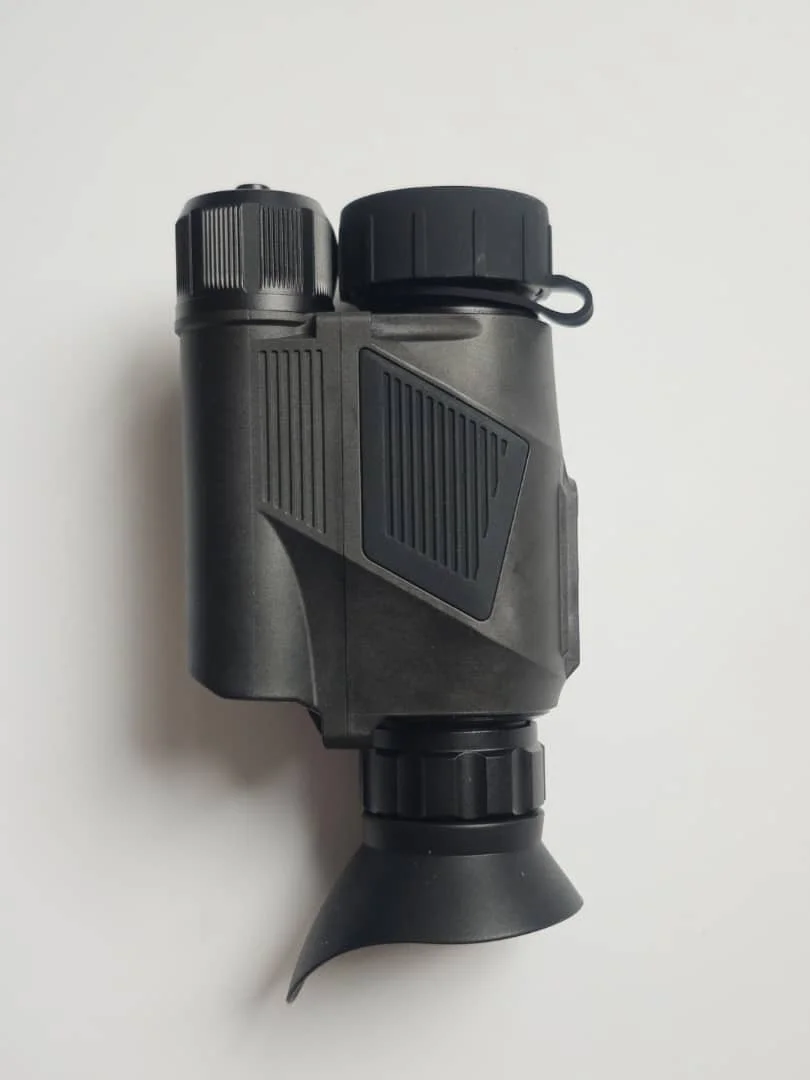

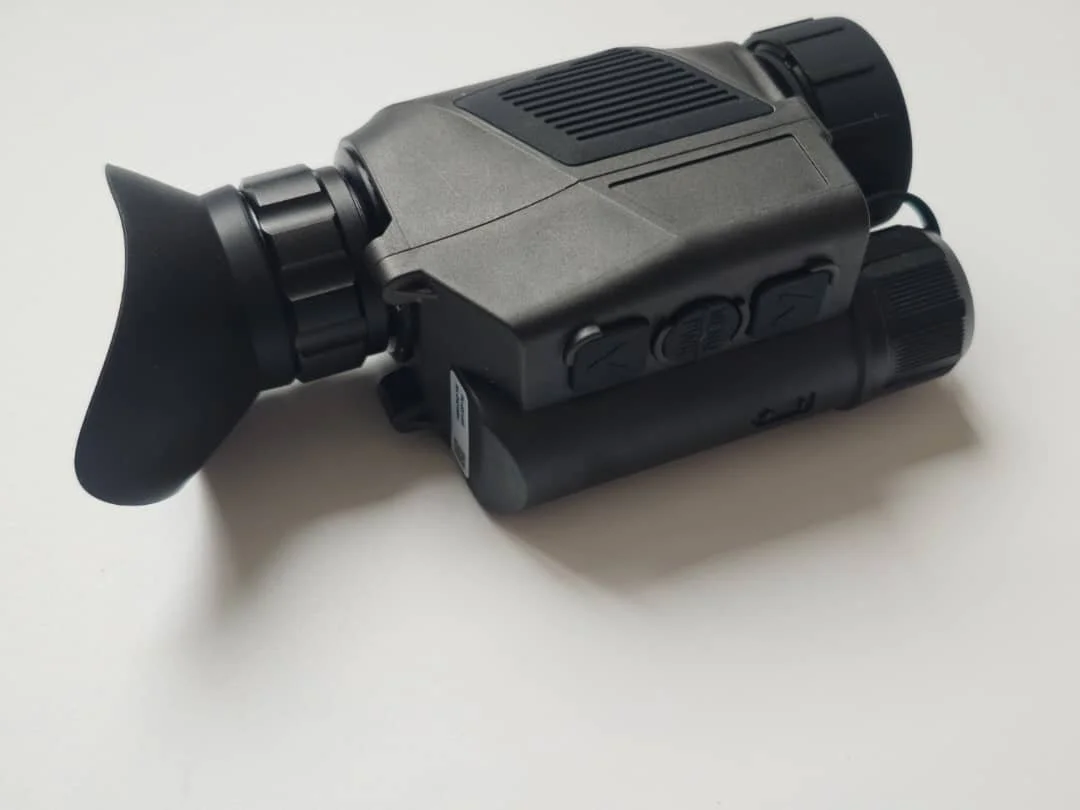

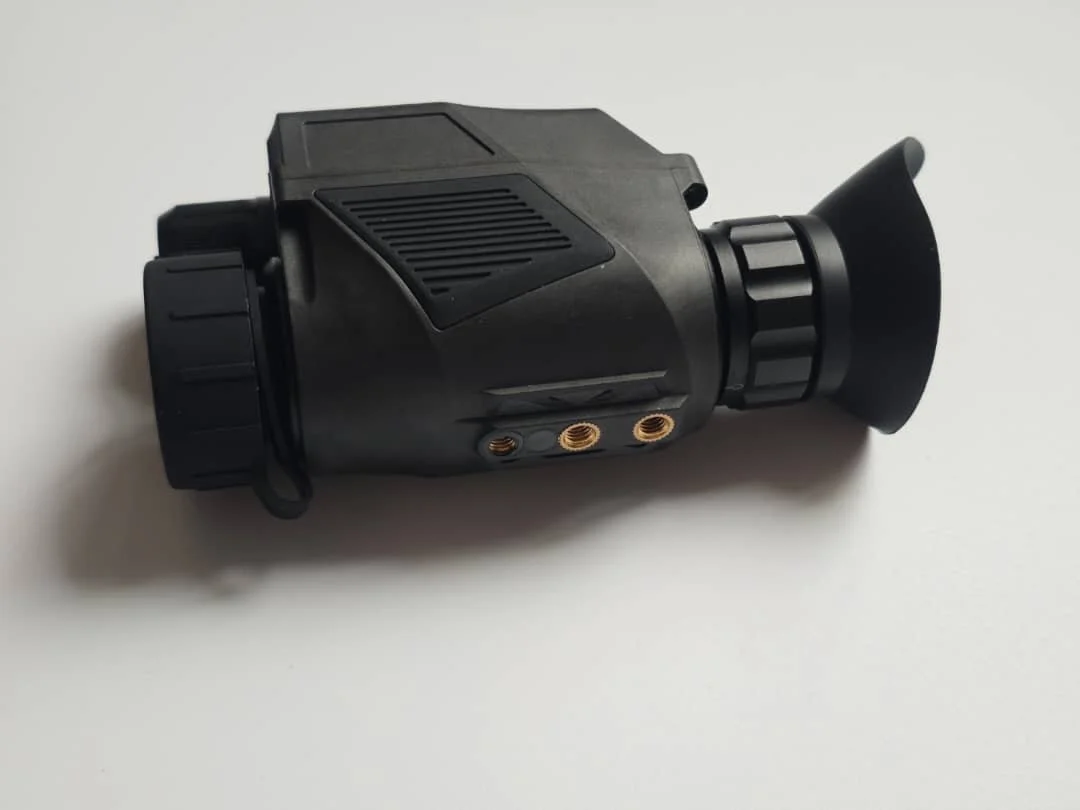

The Jerry-YM 2.0 weighs less than 7 ounces/200 grams and includes additional features like a digital compass, inclinometer, up to 8x digital zoom and the ability to be powered by 3.7V 18650 batteries as well as off-board power via USB-C.
New Features for 2025
New for 2025, the in-menu screen offset adjustments allow users to adjust the screen position to line up their already-zeroed day optic. This adjustment also helps users to align the image for use beside a night vision monocular for hybrid-thermal helmet setups.
Red hot mode is also enhanced to provide a hybrid rainbow gradient to help with target differentiation.

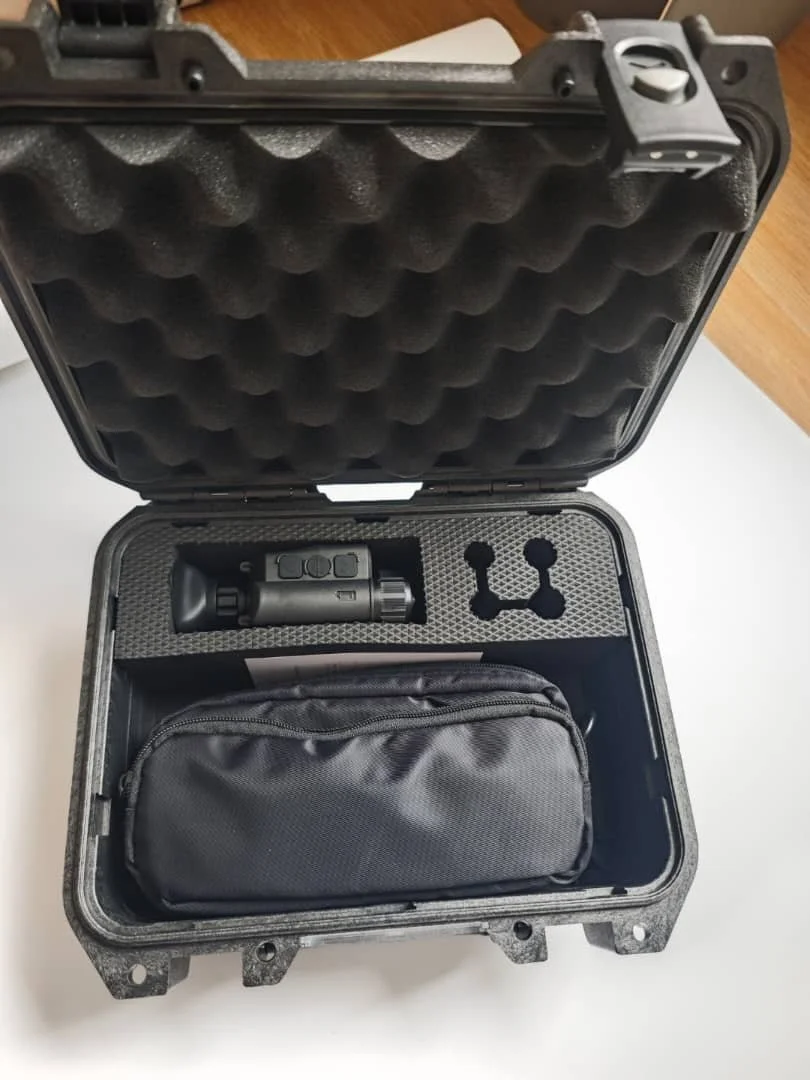

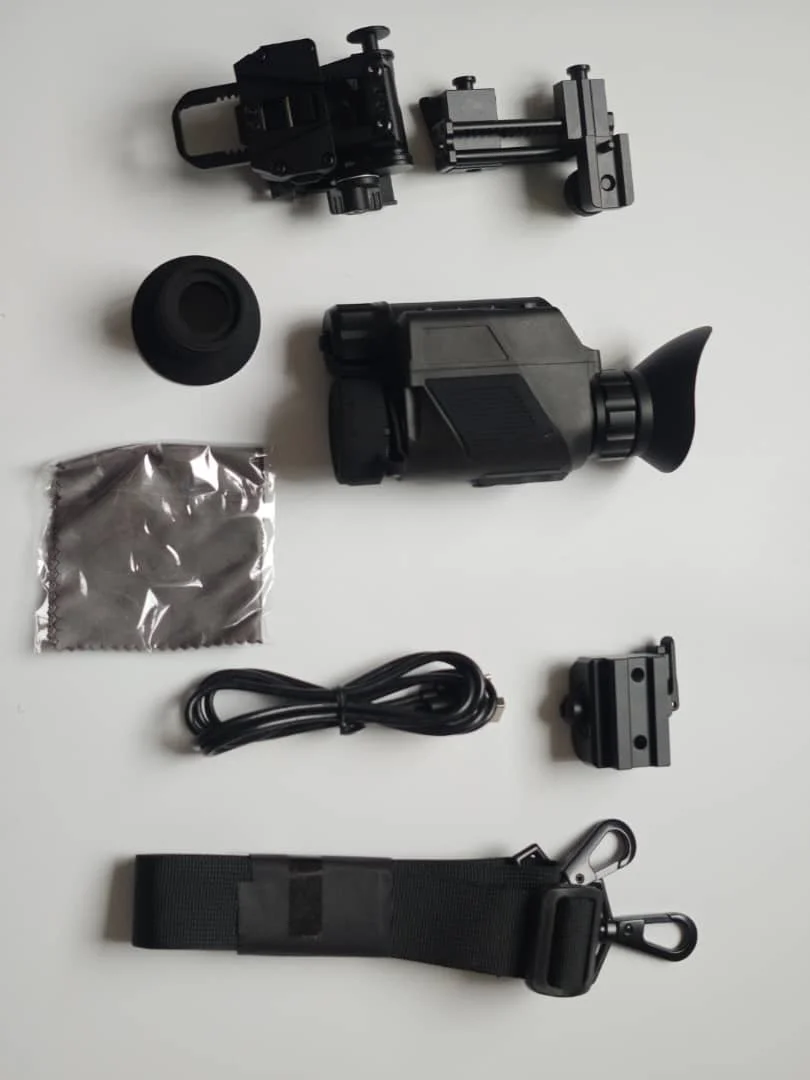

Box Contents:
Thermal Monocular
Dovetail monocular arm (allows switching from left to right eye)
G24-style dovetail NVG mount
1.54" height (lower 1/3) Picatinny mount
Carrying Case
Cleaning Cloths
USB-C cable
Detector Type
12µm Uncooled VoX Microbolometer
Core Resolution - 640x512
NETD - <= 25mK
Refresh Rate - 50Hz
Lens System - 27mm, F/1.1
FOV - 16.3° x 12.3°
Magnification - 1-8x
Detection Range - 1200m or yards
Exit Pupil Distance - 20mm
Diopter Adjustment -5 to +5
Digital Zoom - 1,2,4,8x
Rear Display - 1024x768 OLED

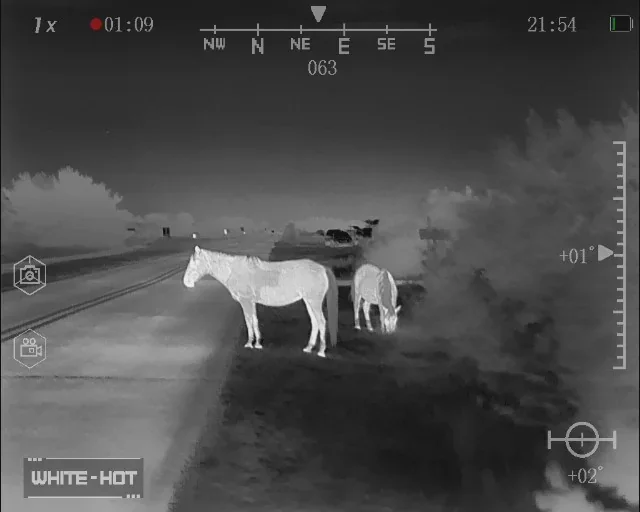

Palettes - White-hot, Black-hot, Orange-hot, Rainbow
Temperature Modes - Default, Outdoor, Arctic, Rainforest
Auto-NUC - Yes; manual also
Digital Compass - Yes
Picture in Picture - Yes
Crosshair - Display on/off; Position Adjustment; White, Black or Green colour
Digital Inclinometer - Yes (roll and pitch)
Analog Video Output - PAL via USB port
Battery Type - 1x 18650 (4.2V Max)
Battery Operating Time - 18650 - 5 hours
Dimensions - 140x70x50mm
Weight 220g
