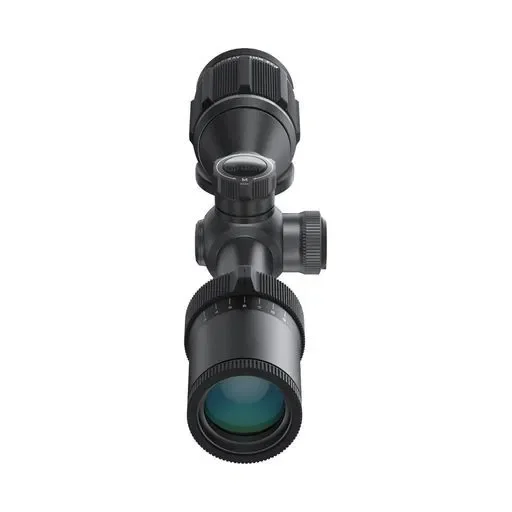

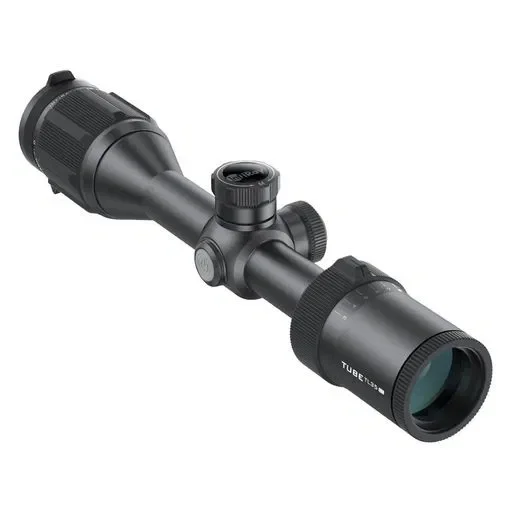

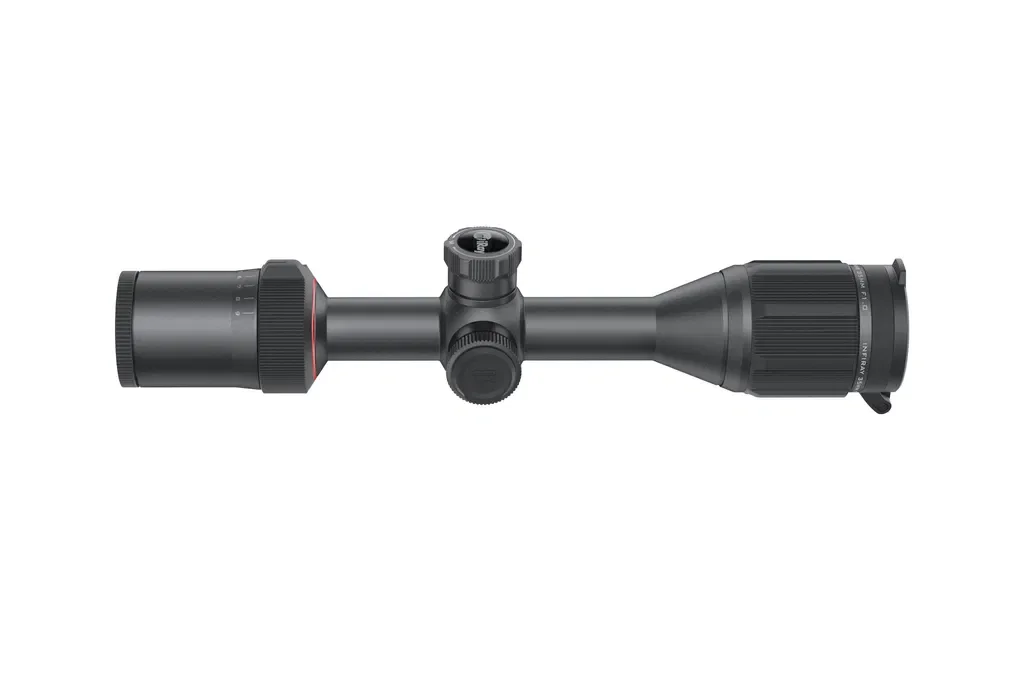

The InfiRay TL35 SE retains most of the highly recognized features of TUBE series in a surprisingly compact body with a lighter weight of only 750g. It also adopts a zoom ring to adjust magnification, a Bluetooth LRF to provide precise distance measurement and a controller instead of buttons. TUBE SE is sure to bring you an all-round easier experience. With better sensor and display resolution, much greater optical magnification, and a detection range out to 1800m the TL35 SE is a fantastic choice for a thermal rifle scope.
12um Sensor with NETD ≤25mK
TUBE SE is equipped with the 12um sensor with NETD ≤ 25mK. It’s lighter, lower power consumption, ensures perfect detailed recognition even in the hardest weather conditions when thermal contrast is low.
Easier to Carry
TUBE SE has a body that only weighs 750g which is 28% less compared to the normal 1kg thermal riflescope.
Easier to Use Zoom Ring
TUBE SE adopts a zoom ring to adjusting magnification which is consistent with the using habit of the day scope. The zoom ring is made of silicone material, which is soft and comfortable, and anti-slip.
Controller Controls Over 90% Functions
Over 90% functions can be completed by the controller of TUBE SE. The operation is simplified and to bring your more convenience during the night.
Bluetooth LRF
TUBE SE is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting.
9hrs Working time
The working time of TUBE SE is up to 9 hours to keep your hunting going all night. Therefore you shouldn’t need to take the power pack and extra charging accessories.
Built-in Mic
TUBE SE is equipped with a MIC function, therefore customers can record the voice when recording.
TypeVoxResolution，pixels384*288Pixel size，μm12NETD，mk≤ 25Refresh rate，Hz50Optical SpecificationsObjective Lens，mm35Field of View（H×V），°7.5×5.3Linear Field of View（H×V），m at 100m13.2×9.3Optical Magnification, ×3.0Magnification，×3.0~9.0xEye Relief，mm50Exit pupil Diameter，mm6Diopter Adjustment-5~+4Detection Range，m（Target size：1.7m×0.5m，P(n)=99%）1800Display SpecificationsTypeAMOLEDResolution,pixels1536*1080Battery Power SupplyBatteryBuilt-in 18650 battery-3350mAhMax. operating Time(22℃)*，h9External Power Supply5V (Type C)Physical SpecificationsWi-Fi/APPSupport (InfiRay outdoor)Photo/Video RecorderSupportMICSupportBluetoothSupportMemory Capacity32GBIP RatingIP67Operating Tempeture，℃-20 ~ +50Weight，g750Dimension，mm310x70x70
The InfiRay TL35 SE retains most of the highly recognized features of TUBE series in a surprisingly compact body with a lighter weight of only 750g. It also adopts a zoom ring to adjust magnification, a Bluetooth LRF to provide precise distance measurement and a controller instead of buttons. TUBE SE is sure to bring you an all-round easier experience. With better sensor and display resolution, much greater optical magnification, and a detection range out to 1800m the TL35 SE is a fantastic choice for a thermal rifle scope.
12um Sensor with NETD ≤25mK
TUBE SE is equipped with the 12um sensor with NETD ≤ 25mK. It’s lighter, lower power consumption, ensures perfect detailed recognition even in the hardest weather conditions when thermal contrast is low.
Easier to Carry
TUBE SE has a body that only weighs 750g which is 28% less compared to the normal 1kg thermal riflescope.
Easier to Use Zoom Ring
TUBE SE adopts a zoom ring to adjusting magnification which is consistent with the using habit of the day scope. The zoom ring is made of silicone material, which is soft and comfortable, and anti-slip.
Controller Controls Over 90% Functions
Over 90% functions can be completed by the controller of TUBE SE. The operation is simplified and to bring your more convenience during the night.
Bluetooth LRF
TUBE SE is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting.
9hrs Working time
The working time of TUBE SE is up to 9 hours to keep your hunting going all night. Therefore you shouldn’t need to take the power pack and extra charging accessories.
Built-in Mic
TUBE SE is equipped with a MIC function, therefore customers can record the voice when recording.
TypeVoxResolution，pixels384*288Pixel size，μm12NETD，mk≤ 25Refresh rate，Hz50Optical SpecificationsObjective Lens，mm35Field of View（H×V），°7.5×5.3Linear Field of View（H×V），m at 100m13.2×9.3Optical Magnification, ×3.0Magnification，×3.0~9.0xEye Relief，mm50Exit pupil Diameter，mm6Diopter Adjustment-5~+4Detection Range，m（Target size：1.7m×0.5m，P(n)=99%）1800Display SpecificationsTypeAMOLEDResolution,pixels1536*1080Battery Power SupplyBatteryBuilt-in 18650 battery-3350mAhMax. operating Time(22℃)*，h9External Power Supply5V (Type C)Physical SpecificationsWi-Fi/APPSupport (InfiRay outdoor)Photo/Video RecorderSupportMICSupportBluetoothSupportMemory Capacity32GBIP RatingIP67Operating Tempeture，℃-20 ~ +50Weight，g750Dimension，mm310x70x70
